Permobil-R-NET BUS CONNECTOR BLOCK 4-PORT

Description

Centralizing Power Wheelchair Communication

Modern power wheelchairs are extraordinary engineering achievements, delivering customizable mobility solutions tailored to individual physical needs. Beyond driving, users rely on complex electronic networks to manage power seat elevation, tilt, recline, specialized input switches, Bluetooth adapters, and attendant controls.

At the center of this intricate setup on a Permobil wheelchair sits the R-NET control system. For all these electronic components to talk to one another smoothly, they need a secure, central meeting point. The Permobil R-NET BUS Connector Block 4-Port serves as that essential central hub, allowing multiple devices to link seamlessly into the chair’s primary data network.

What Is the Permobil R-NET BUS Connector Block 4-Port?

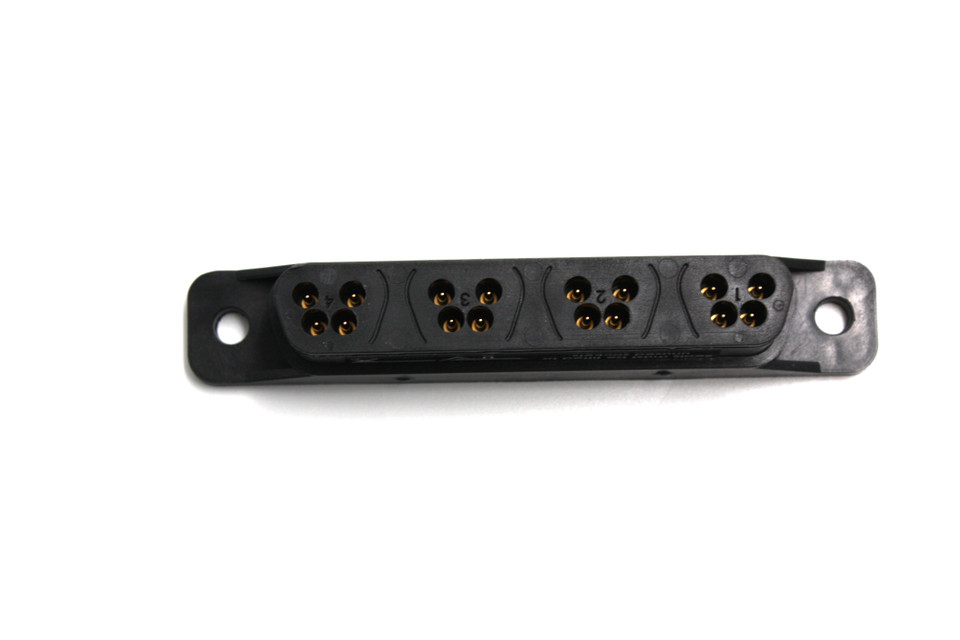

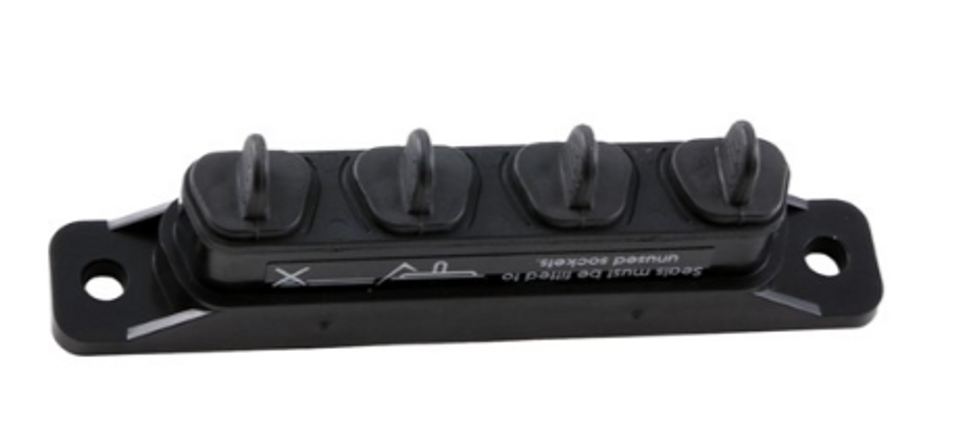

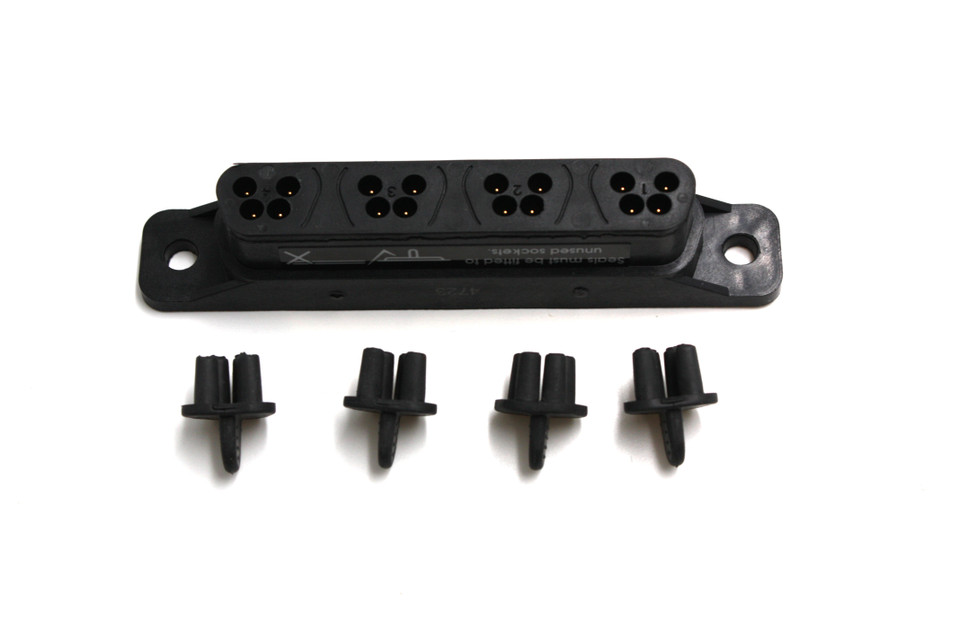

The Permobil R-NET BUS Connector Block 4-Port is a heavy-duty, compact junction block designed to expand the connectivity of Permobil R-NET electronic systems. Acting like a multi-port network hub, it takes data signals from up to four different R-NET bus cables and integrates them into a single, cohesive communication network.

Rather than running long, complicated daisy-chain cables from one end of the wheelchair frame to the other, this 4-port block provides a dedicated terminal where joysticks, seating actuators, specialty controls, and expansion modules plug in together.

Why a Multi-Port Connector Hub Is Critical for Complex Setups

As power wheelchairs become more sophisticated, the number of connected electronic accessories increases. A standard joystick module may only feature one or two built-in bus ports, which quickly creates a bottleneck when adding extra features like power leg rests, environmental control systems, or secondary joysticks.

you may also like some of our products:

• Permobil O2 Holder for Vent Tray
• Permobil main fuse cable
• Permobil battery cable
• UniTrack USB Charger

Expanding Connectivity Without System Clutter

The Permobil R-NET BUS Connector Block 4-Port solves hardware bottlenecks by offering immediate port expansion:

• Simultaneous Connections: Allows up to four distinct R-NET devices to communicate across the main system concurrently.

• Organized Wiring: Creates a single, central junction point on the chair frame, keeping loose wires neatly consolidated.

• Custom Mobility Solutions: Gives ATPs (Assistive Technology Professionals) and technicians the flexibility needed to install advanced seating and alternative input equipment.

High-Performance Durability for Everyday Mobility

Power wheelchairs experience continuous physical movement, frame vibrations, outdoor weather variations, and occasional impacts with door frames or furniture. Every electrical connection on the chair must be tough enough to maintain solid contact through it all. visit the official Permobil makers site

Engineered for Strong Electrical Integrity

• Rugged Housing: Constructed from impact-resistant, industrial-grade materials designed to shield internal pin contacts from physical damage and dust.

• Corrosion-Resistant Terminals: High-quality internal contacts maintain strong electrical conductivity, reducing signal degradation over time.

• Secure Port Fit: R-NET bus cable plugs snap firmly into each of the four ports, preventing loose connections or accidental unplugs when driving over rough, uneven terrain.

Preventing Bus Communication Failures and Error Codes

Because the R-NET platform relies on continuous, high-speed digital communication between modules, a loose plug or unstable connection block can disrupt data flow across the entire wheelchair. When the main control processor loses contact with a connected module, it triggers a “bus error” safety lockout, bringing the wheelchair to a stop until the fault is resolved.

By routing your electronics through a genuine Permobil R-NET BUS Connector Block 4-Port, you safeguard your chair against frustrating connection dropouts:

1. Stable Signal Transfer: Ensures uninterrupted data delivery between driving controls, seating modules, and motor controllers.

2. Reduced Interference: Protects data packets from signal noise or resistance issues caused by improper wire splicing.

3. Consistent Operation: Guarantees that every command from a subtle joystick push to a seat recline toggle translates into smooth, immediate action.

Compact Design for Easy Installation and Mounting

Space along a power wheelchair frame is always at a premium. Under-seat areas are packed with motors, batteries, and power seating mechanics, leaving little room for bulky accessories.

Simple Integration onto Any Permobil Frame

The Permobil 4-Port Connector Block features a compact, low-profile footprint engineered for effortless placement:

• Tuck-Away Footprint: Fits neatly inside existing battery compartments, under seating frames, or behind shroud covers.

• Quick Plug-and-Play Setup: Requires no complex wiring or soldering; simply insert your standard R-NET bus cables directly into open ports.

• Hassle-Free Maintenance: Makes troubleshooting fast and straightforward. Technicians can easily test, swap, or re-route individual component lines without dismantling the whole wiring loom.

Essential for Upgrades, Customizations, and Maintenance

Whether you are configuring a brand-new Permobil power chair or maintaining an existing mobility setup, the 4-port connector block is an invaluable tool for system expansion.

It is particularly useful when upgrading your chair with alternative drive controls (such as head arrays, chin joysticks, or sip-and-puff systems) alongside power seating functions. Having open, reliable ports ready to receive data lines ensures that future technological upgrades can be added smoothly without needing to replace main control hardware.

Key Benefits at a Glance

• 4-Port Network Expansion: Connects up to four R-NET electronic devices into one streamlined network.

• Genuine Permobil Component: Engineered specifically to meet Permobil’s strict electronic specifications.

• Prevents Bus Errors: Delivers firm, continuous pin contact to eliminate signal loss and safety lockouts.

• Compact, Rugged Design: Built to withstand daily wheelchair vibration, impacts, and heavy use.

• Clean Cable Management: Centralizes wire routing to prevent messy, tangled cables under the seat.

• Tool-Free Plug Connection: Accepts standard R-NET bus cable connectors for fast installation and routine servicing.

Is the Permobil R-NET BUS Connector Block 4-Port Right for You?

Selecting the right junction hardware is key to maintaining a safe, responsive power wheelchair setup. The Permobil R-NET BUS Connector Block 4-Port is the right solution if you:

• Need to connect multiple electronic accessories, power seat functions, or joysticks to a Permobil chair with limited available bus ports.

• Want to organize and consolidate loose wiring into a clean, centralized junction block.

• Are replacing an old, corroded, or damaged bus connector block that is causing system communication errors.

• Are upgrading your wheelchair with advanced alternative drive inputs or specialized attendant controls.

Keep your power wheelchair’s electronic system connected, organized, and performing at its best. With the Permobil R-NET BUS Connector Block 4-Port. You get the dependable connectivity and peace of mind needed for uninterrupted daily mobility.
