Description

Restoring Peak Performance with a Medical-Grade Charger

When you rely on an electric wheelchair or mobility scooter for your daily independence, your battery charger is just as important as the motor itself. Using a generic, low-grade charger can slowly damage your battery cells, leading to shorter travel ranges and early battery failures. Consequently, choosing a premium, high-output pride mobility scooter battery charger is the single best way to protect your physical and financial investment.

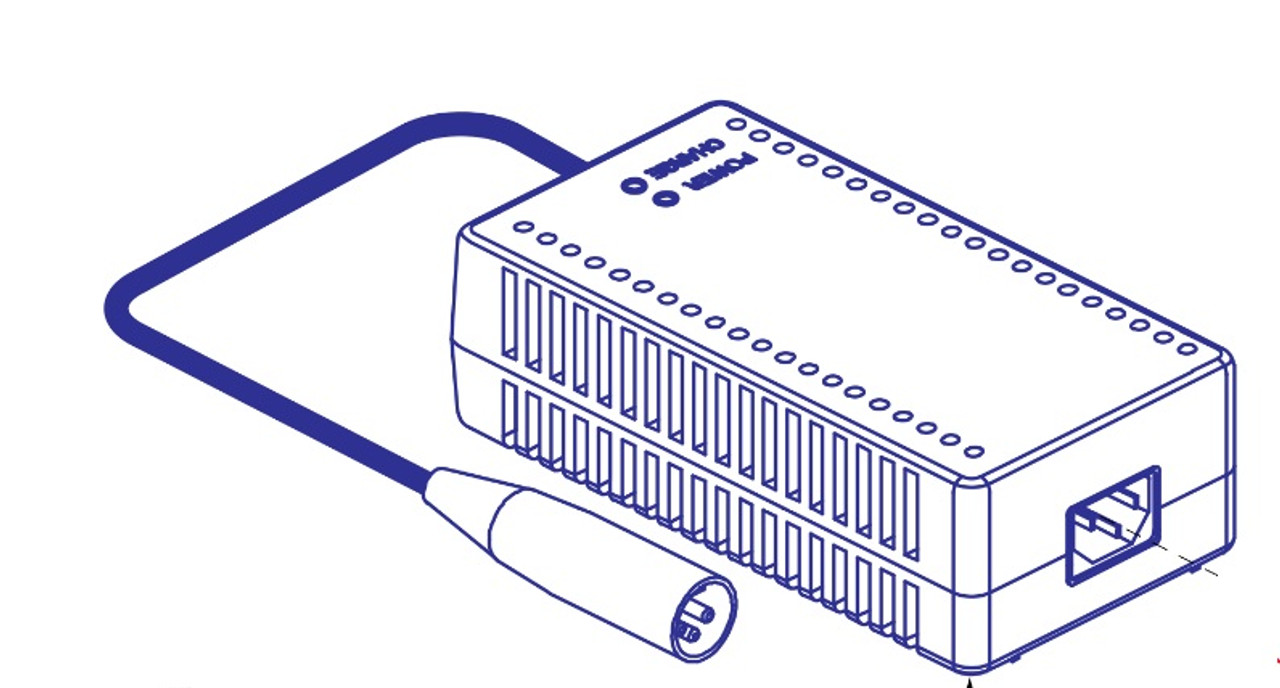

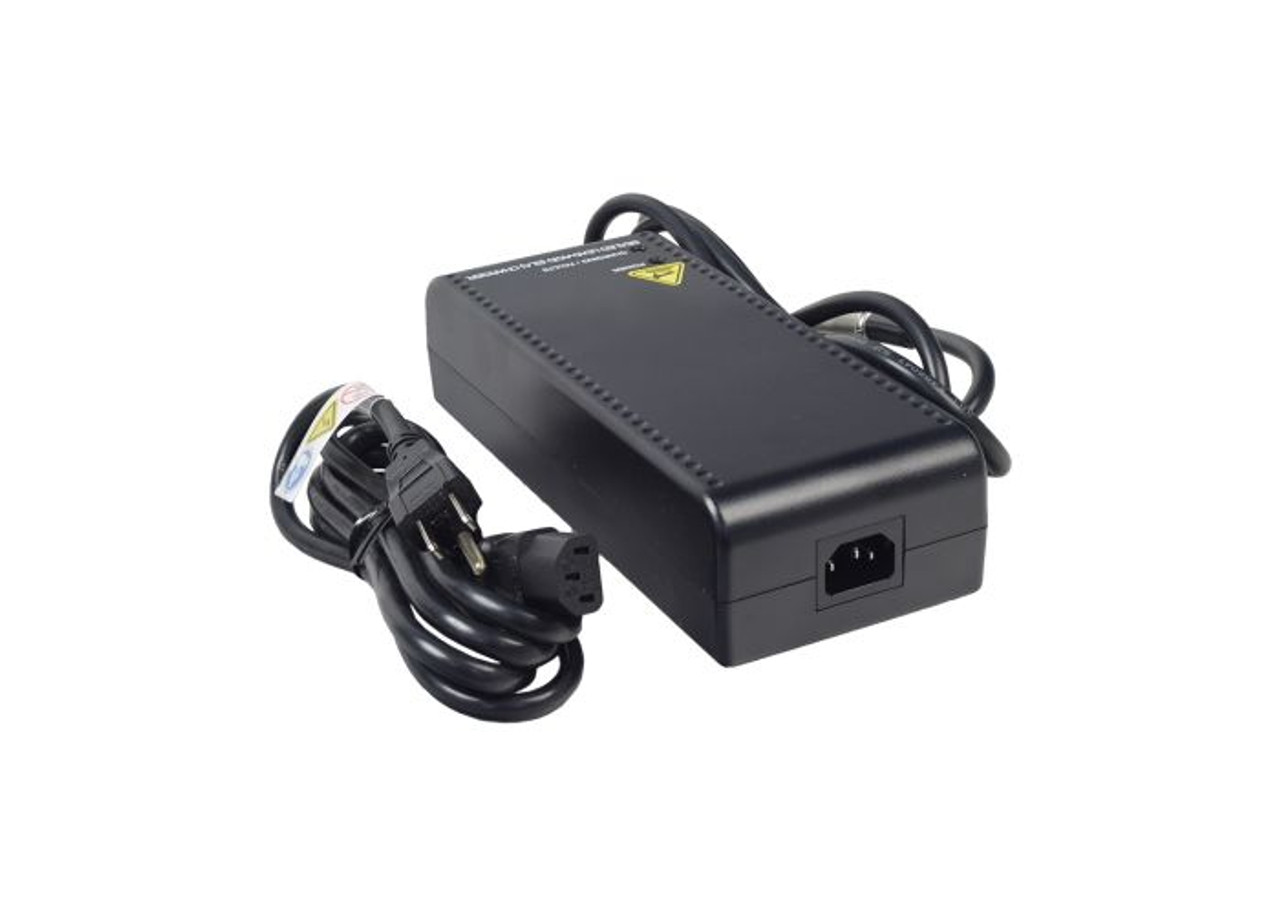

The UPG 24BC8000T-4 is an industrial-strength, 24 Volt 8.0 Amp off-board battery charger built by Universal Power Group (UPG), a highly respected manufacturer in the medical and mobility industry. Unlike cheap, lightweight plastic contraptions that overheat and fail after a few months, this heavy-duty, aluminum-cased charger provides the reliable, professional-grade power supply your scooter needs.

Understanding the Power Output: 24 Volt 8.0 Amp XLR Charging

The speed and safety of your charging cycle depend heavily on matching the charger’s amperage output to your battery’s storage capacity. This high-output 8.0 Amp charger is specifically optimized for larger mobility batteries (typically ranging from 27 Ah to 80 Ah).

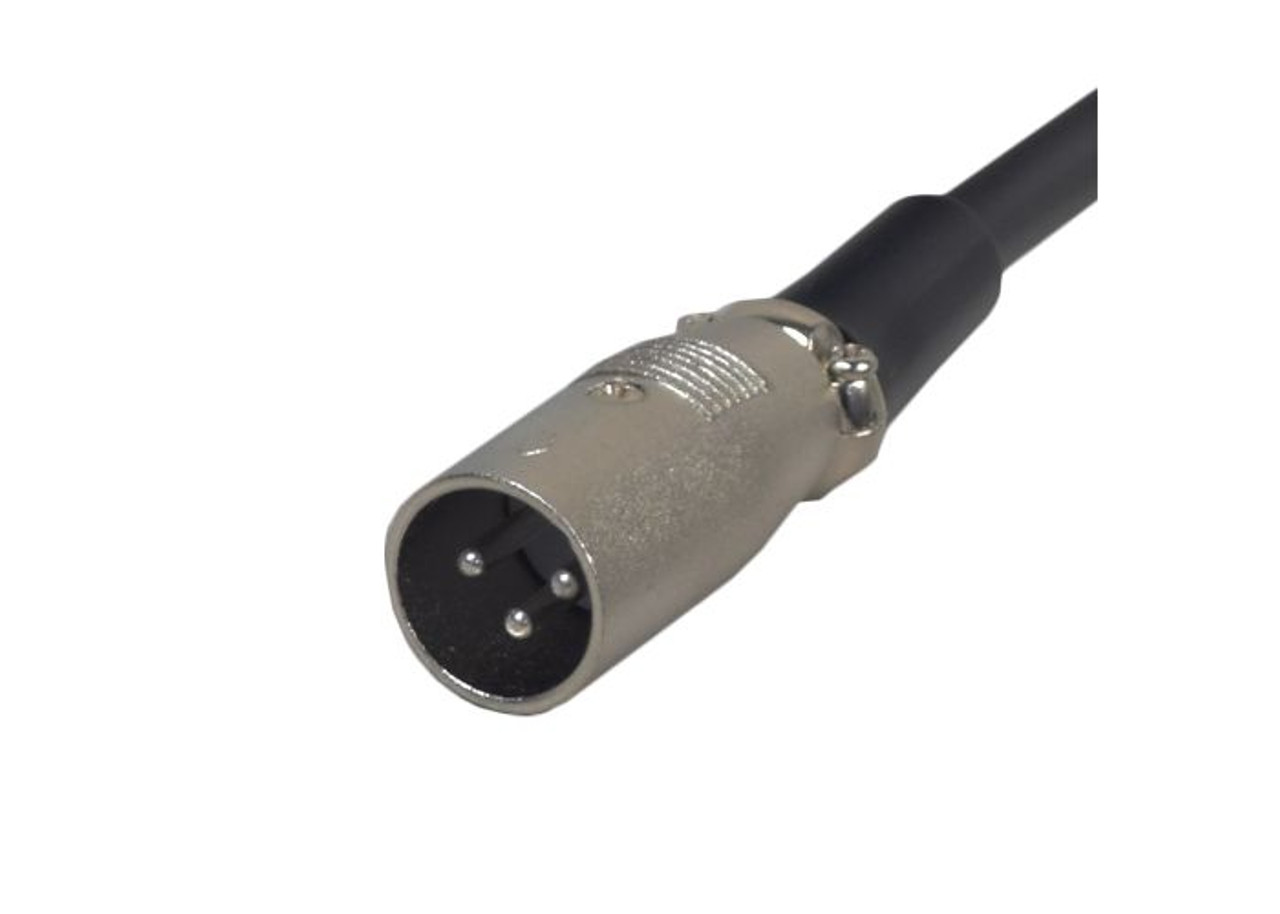

Using a low-output 2-amp or 5-amp charger on large batteries can keep your machine plugged into the wall for up to 18 hours. However, with a potent 8-amp current delivered through a standard 3-pin male XLR connector, this pride mobility scooter charger quickly replenishes your system, significantly reducing your downtime.

Furthermore, because it supports a wide input voltage range of AC 100V-240V, it functions flawlessly around the globe. Whether you are charging at home in the USA or traveling abroad, this charger adapts automatically to deliver a steady, safe charge.

Advanced Dual-Mode Technology: AGM vs. Gel Output

Sealed lead-acid batteries are not all built the same. Mobility scooters and power chairs generally run on either Absorbed Glass Mat (AGM) or Gel cell batteries. Because these two chemistries require slightly different charging voltages, using a single-profile charger can shorten your battery’s lifespan.

To address this issue, this premium UPG charger features a built-in dual-mode selector switch:

• AGM Mode: Directs a maximum charging voltage of up to 29.6V during the fast-charge state, dropping to a 27.4V float charge.

• Gel Mode: Directs a maximum charging voltage of 28.6V during the fast-charge state, dropping to a 26.6V float charge.

By setting the switch to your exact battery type, you ensure that the internal microprocessors apply the absolute perfect voltage profile. This precision minimizes heat buildup and maximizes your overall driving range on a single charge.

The Complete 3-Stage Automatic Charging Cycle

Leaving your scooter plugged into a cheap manual charger can cause dangerous overcharging, causing your batteries to swell and leak. To protect your equipment, this best battery charger utilizes an advanced 3-stage charging cycle controlled by integrated circuitry:

Industrial-Grade Protection: Built-In Safety Protocols

Because your pride scooter battery charger is a medical-grade accessory, UPG has integrated several robust safety features directly into the hardware. These protective protocols keep you, your home, and your scooter safe:

1. Short Circuit Protection

If the charging pins or wires accidentally touch or sustain damage, the charger shuts down instantly. It is fully “self-recovering,” meaning it resumes normal operations once you resolve the fault condition.

2. Overcurrent & Over Voltage Protection

The system continuously monitors the flow of electricity. If an external power surge or battery malfunction triggers an unexpected spike in current, the charger caps the output to prevent damage to your scooter’s internal wiring harness.

3. Battery Polarity Reversal Protection

Connecting positive and negative terminals backward can instantly melt wires and ruin a controller. This charger prevents any current flow if it detects a reversed polarity connection, safeguarding your electronics.

4. Low Voltage Inhibit Protection

If your batteries have sat depleted for months and dropped below a critical threshold (typically under 14V), the charger will not start. This prevents the charger from forcing electricity into a dead, structurally damaged battery cell.

Why this Heavy-Duty Charger is the Best Travel Companion

When traveling, you need a dependable portable battery charger that can handle being packed into bags, car trunks, or scooter baskets. While many cheap travel chargers use thin, fragile plastic housings that crack upon impact, this UPG unit is constructed with a durable, convection-cooled aluminum case.

Despite its rugged metal construction, it remains highly portable. By utilizing modern switch-mode technology rather than heavy, old-fashioned linear transformers, UPG has created a surprisingly lightweight portable charger battery package. It packs easily and runs cool without loud, buzzing cooling fans.

you may also like some of our products:

• Permobil Wheelchair
• Joystick Controller
• Power Module
• Joystick

Easy-to-Read LED Status & Fault Diagnostics

To make daily operation completely straightforward, the front panel features intuitive, dual LED indicators that provide real-time updates and diagnostic fault codes:

DOE Compliance Note: To meet strict Department of Energy mandates, this smart charger automatically shuts off after 20 hours of continuous charging. To maintain battery health during long storage periods, it features an “Auto-Restart” function that turns the charger back on if the battery voltage drops below 25.3V.

Universal Compatibility with Pride and Permobil Systems

Because it utilizes a standard, heavy-duty 3-pin XLR male connector and offers an automatic dual-mode profile, this charger is the ideal match for a wide range of premium mobility brands. It works flawlessly as a replacement permobil battery charger or high-capacity pride charger:

• Pride Mobility Scooters: Compatible with larger travel and outdoor scooters, including the Pursuit, Victory, and Maxima series.

• Jazzy Power Chairs: Ideal for mid-wheel drive models like the Jazzy Select, Elite, and heavy-duty series.

• Permobil Power Chairs: Perfectly tuned to handle the high-capacity Gel batteries in the Permobil F3, F5, and M3 series.

• Quantum Rehab Chairs: Excellent for TRU-Balance power positioning chairs using standard off-board charging ports.

Invest in the Long-Term Health of Your Mobility Scooter

Your mobility equipment represents your personal freedom, and your charger is the heartbeat of that freedom. Do not settle for unbranded, lightweight plastic chargers that put your expensive batteries at risk. Upgrading to a premium, heavy-duty pride mobility scooter battery charger like the UPG 24BC8000T-4 guarantees faster, safer, and more reliable power delivery.

With its robust aluminum build, smart dual-mode technology, complete 3-stage automatic maintenance, and multi-layered safety certifications, this charger represents the absolute gold standard for active mobility users. visit the official Pride Mobility makers site

Take the guesswork out of maintaining your power chair or scooter. Order your premium UPG 24V 8A XLR Battery Charger today and enjoy the peace of mind of reliable, medical-grade power!
