XLR Charger Connector – Male, 3 Pins

Description

The Importance of a Reliable Battery Charger Plug

For individuals relying on power wheelchairs and electric mobility scooters, a fully charged battery is the foundation of daily independence. However, the charging process is only as reliable as the physical connection between your charger cable and your mobility device. Continuous plugging, unplugging, and cord bending can cause the charger plug to loosen, crack, or suffer internal wiring damage over time.

A damaged or worn plug can lead to intermittent power flow, slow charging cycles, or complete failure to charge your battery. The Male 3-Pin XLR Charger Connector offers an easy, durable, and cost-effective replacement solution. Engineered to restore a solid electrical connection to your battery charger, this compact connector ensures your mobility device stays fully powered and ready for daily use.

What Is the Male 3-Pin XLR Charger Connector?

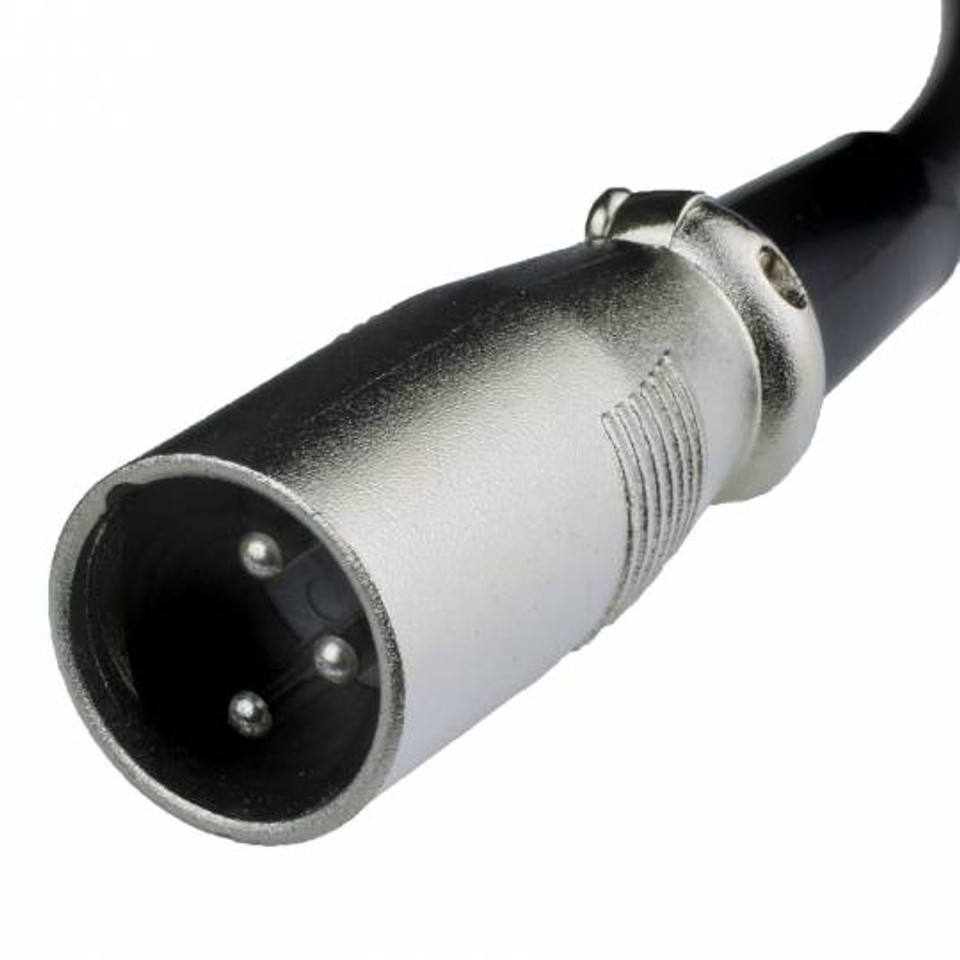

The Male 3-Pin XLR Charger Connector is a standard 3-pin male plug designed to replace worn, broken, or damaged charging ends on off-board battery chargers. Measuring 2.66 inches in length, this compact plug houses three precision-engineered pins designed to align perfectly with female XLR charging ports found on mobility scooter joysticks, power chair charging sockets, and battery boxes.

Constructed with a heavy-duty housing and an integrated screw-adjustable strain relief mechanism, this connector prevents internal wire fraying and secures the charger cable against accidental tugs and pulls. It provides a professional-grade replacement part for wheelchair users, caregivers, and mobility equipment repair technicians looking to fix charger cables without buying an entirely new charging unit.

Heavy-Duty Construction for Long-Term Daily Reliability

Power wheelchair chargers are frequently wrapped up, packed into travel bags, or dragged across floors. The plug end takes the brunt of this physical stress, making sturdy construction an absolute necessity.

Compact Design Meets Heavy-Duty Hardware

• Durable Outer Shell: The outer casing protects internal electrical terminals against accidental drops, impacts, and daily handling friction.

• Compact 2.66-Inch Length: Offers a comfortable grip for plugging in and pulling out without adding unnecessary length to your charger cable.

• Precision 3-Pin Alignment: Features standardized pin spacing to ensure smooth insertion into female XLR charging sockets without bending internal contacts.

Integrated Screw Adjustable Strain Relief

The most common point of failure on any battery charger cable is the stress point where the flexible cord enters the rigid plug housing. Repeated bending causes copper wires to fray, snap, or short-circuit inside the connector body.

Protecting Internal Wiring Against Cable Wear

The Male 3-Pin XLR Charger Connector solves this issue with an integrated screw-adjustable strain relief mechanism:

1. Firm Cable Clamping: Internal clamp plates tighten around the outer jacket of the cable using adjustable screws, locking the cord securely to the plug body.

2. Relieves Wire Tension: Forces any pulling or twisting tension onto the heavy-duty outer casing rather than the delicate soldered wire connections inside.

3. Custom Cable Fit: Accommodates various cable thicknesses, allowing you to tighten the clamp for a snug, non-slip fit around your specific charger wire.

Universal Compatibility for Power Wheelchairs and Scooters

The 3-pin XLR connection is the industry-standard charging format used by leading mobility manufacturers worldwide. Whether you operate a power chair, a folding mobility scooter, or a heavy-duty personal transporter, this male plug provides broad compatibility.

Versatile Power Applications

• Off-Board Battery Chargers: Fits standard 24V off-board chargers used for Pride Mobility, Golden Technologies, Permobil, Drive Medical, and Invacare wheelchairs.

• Joystick Charge Ports: Connects directly into standard 3-pin female ports located on joystick controllers (such as PG Drives, Dynamic Controls, and Pride VSI modules).

• Direct Battery Box Sockets: Works with standalone battery pack charging terminals for portable scooters and power chairs.

Easy Maintenance and Replacement Installation

Replacing a damaged plug on an existing battery charger is a straightforward task. That saves money compared to replacing the entire electronic unit .Visit the official Permobil makers site

Key Installation Steps

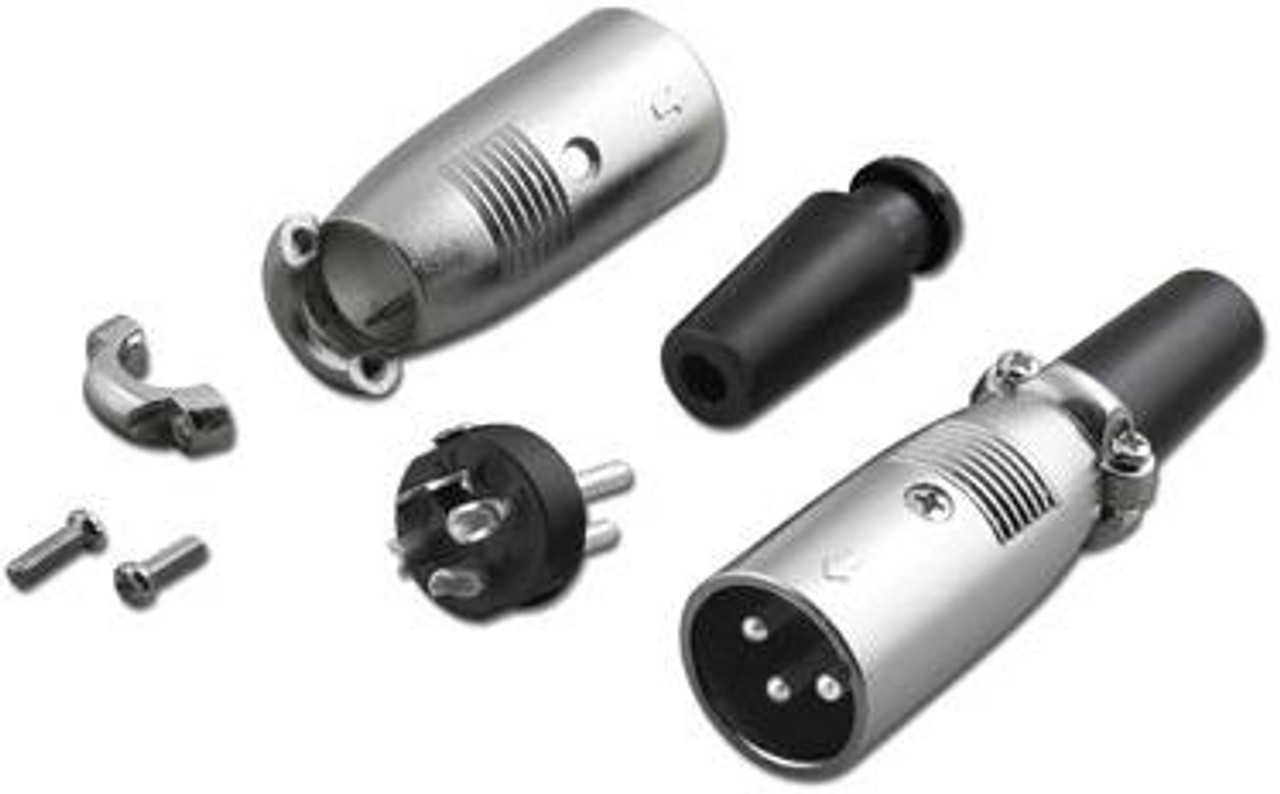

• Disassemble Casing: Loosen the housing screws to open the male plug body and expose the terminal pin contacts.

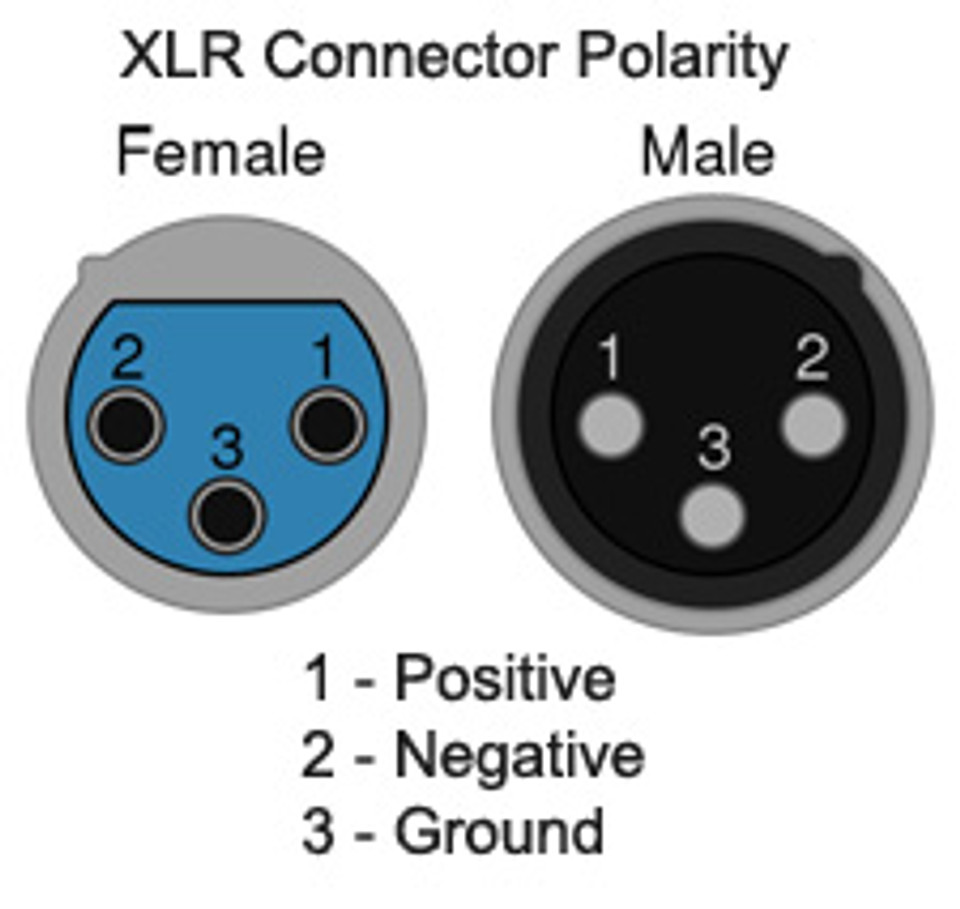

• Prepare Charger Wires: Strip the outer insulation of your charger cable, insert the cable through the strain relief base, and connect the positive, negative, and inhibit wires to their corresponding pin terminals.

• Secure Strain Relief: Tighten the screw-adjustable strain relief mechanism around the cable jacket to lock it firmly in place.

• Reassemble Casing: Fasten the outer 2.66-inch housing back together for a clean, fully insulated, factory-ready finish.

  you may also like some of our products:

  • Permobil O2 Holder for Vent Tray
  • Permobil main fuse cable
  • Permobil battery cable
  • UniTrack USB Charger



Key Benefits at a Glance

• Standard 3-Pin XLR Plug: Features a male 3-pin configuration compatible with industry-standard mobility chargers.

• Screw Adjustable Strain Relief: Protects internal wires from fraying, twisting, and tension damage.

• Compact 2.66-Inch Footprint: Provides a comfortable, low-profile grip for easy insertion and removal.

• Cost-Effective Charger Repair: Allows you to fix damaged charger cables quickly without replacing the whole charging unit.

• Durable Construction: Built to withstand frequent plugging, travel, and daily handling.

Is the Male 3-Pin XLR Charger Connector Right for You?

Maintaining a safe, steady power connection is essential for uninterrupted daily mobility. The Male 3-Pin XLR Charger Connector is the ideal choice if you or your client:

• Have a power wheelchair or mobility scooter charger with a cracked, loose, or damaged male plug end.

• Experience intermittent charging or power loss caused by a frayed charger cable wire.

• Need a durable replacement plug with adjustable strain relief to prevent future wire damage.

• Want an affordable OEM-style replacement component for DIY repairs or shop maintenance.

• Rely on a standard 3-pin XLR charging setup to keep your mobility equipment ready to roll.

Ensure a secure, steady charge every time you plug in. With the Male 3-Pin XLR Charger Connector, you enjoy durable construction, essential cable strain relief, and dependable daily power performance.
