$524.00

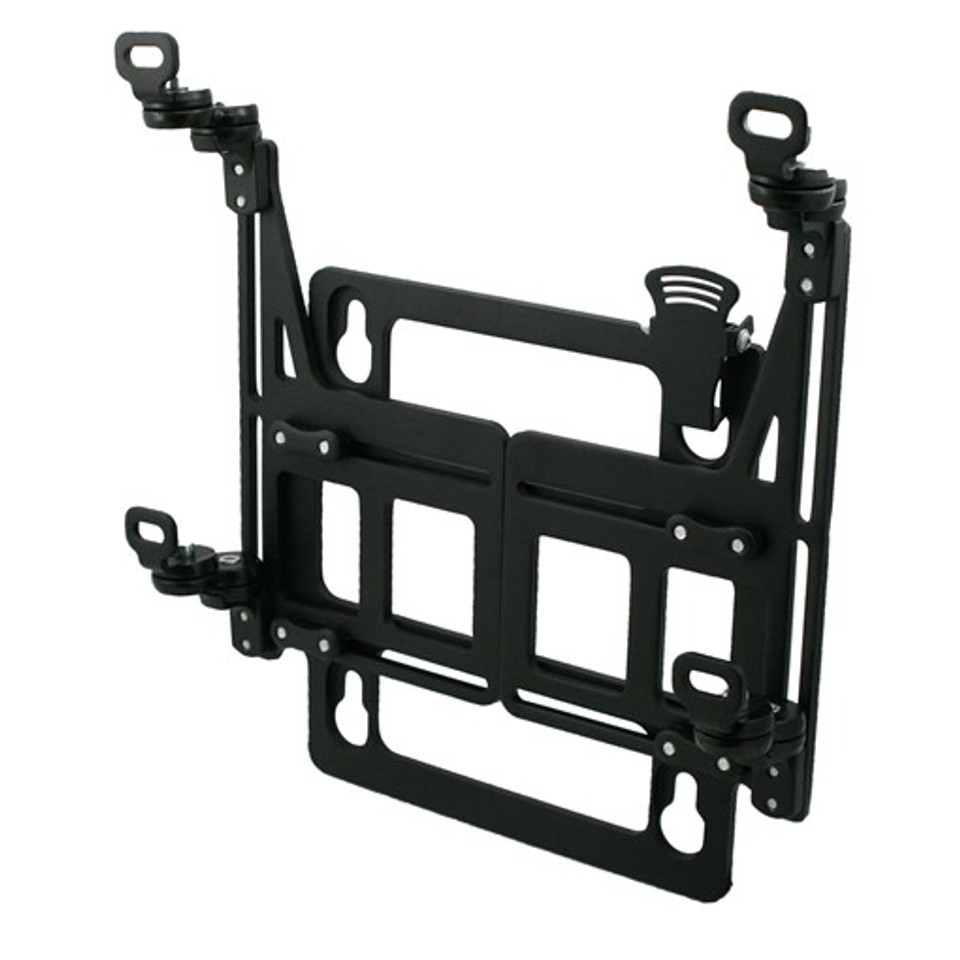

The Direct Backrest Frame is a specialized aftermarket backrest frame designed to mount Jay 3, Matrx Elite and Varilite Icon backrests ranging in width from 14″ to 20″. After removing the hardware that typically comes with each backrest, the frame hardware is able to mount directly to the backrest.
Finding the right backrest mounting system can make a noticeable difference in wheelchair setup, comfort, and everyday usability. The Direct Backrest Frame is a specialized aftermarket mounting frame designed to provide a direct and adjustable connection for compatible Jay 3, Matrx Elite, and Varilite Icon backrests.
Designed for backrests ranging from 14″ to 20″ in width, this mounting solution offers a practical way to create a close-fitting backrest setup while helping maximize available seat depth. Its slotted mounting brackets and 1″ UniTrack linkage disks provide adjustability, allowing the backrest to be positioned according to the needs of the wheelchair configuration.
The frame also features a spring-loaded release lever, making it easier to remove the complete backrest and frame assembly when necessary. For wheelchair users, caregivers, and professionals looking for a flexible backrest mounting solution, the Direct Backrest Frame combines adjustability with convenient removal.
The Direct Backrest Frame is designed as an aftermarket solution for mounting select wheelchair backrests directly to the frame hardware.
Compatible backrest options include:
The frame accommodates compatible backrests from 14 inches through 20 inches in width, providing flexibility for different wheelchair seating configurations.
Rather than relying on the standard hardware supplied with each compatible backrest, the existing backrest hardware is removed and the Direct Backrest Frame hardware mounts directly to the backrest.
This creates a streamlined mounting arrangement while allowing the user or seating professional to make adjustments to the backrest position.
One of the most useful features of the Direct Backrest Frame is its adjustable mounting design.
The slotted mounting brackets allow the backrest to be positioned closely and adjusted to suit the seating configuration. This close mounting approach can help maximize seat depth, which can be especially valuable when working with limited space within a wheelchair seating system.
Proper backrest positioning can be an important part of creating an effective wheelchair setup. Every user’s seating needs are different, so having a mounting system that provides adjustment can make it easier for a qualified seating professional to achieve the desired configuration.
The Direct Backrest Frame is designed to provide that flexibility without unnecessarily taking up additional space behind the user.
Wheelchair seating space is important. Components mounted too far behind the user can reduce usable seat depth or interfere with the overall configuration of the chair.
The Direct Backrest Frame uses slotted mounting brackets and 1″ UniTrack linkage disks to provide a close, adjustable mount.
This design helps maximize seat depth by allowing the backrest to sit close to the wheelchair seating area while still providing room for adjustment.
For wheelchair users who need to make the most of their available seating dimensions, this can be a valuable feature.
The final positioning should always be determined based on the wheelchair, backrest, user’s seating requirements, and professional assessment.
The Direct Backrest Frame incorporates 1″ UniTrack linkage disks as part of its mounting system.
These linkage disks work with the frame hardware to provide an adjustable connection between the backrest and the wheelchair mounting system.
Their design also allows the backrest pitch to be adjusted by rotating the linkage disks. This gives the seating setup additional flexibility without requiring the entire mounting system to be replaced.
The ability to make controlled adjustments can be particularly useful when fine-tuning a wheelchair backrest to achieve an appropriate seating position.
Another key feature is the ability to adjust the backrest pitch by up to 10 degrees.
The linkage disks can be rotated to change the pitch of the backrest, providing additional positioning options for compatible seating systems.
Backrest pitch refers to the angle of the backrest relative to the seating surface. Even a relatively small adjustment can influence the overall positioning and feel of a wheelchair seating system.
Because seating requirements vary considerably from person to person, pitch adjustment gives professionals more flexibility when configuring the backrest.
Any adjustment should be made carefully and according to the requirements of the specific wheelchair and seating system.
Removing a wheelchair backrest does not have to be unnecessarily difficult.
The Direct Backrest Frame features a spring-loaded release lever designed to make removal of the complete backrest and frame assembly easier.
Once the appropriate release mechanism is operated, the backrest and frame assembly can be removed as a unit.
This can be useful when the wheelchair needs to be transported, stored, serviced, or otherwise configured without the backrest assembly in place.
The release mechanism also adds convenience for caregivers and wheelchair professionals who may need to remove or reinstall the backrest as part of routine equipment handling.
The combination of the direct mounting hardware and spring-loaded release lever provides a practical approach to backrest handling.
Once correctly installed, the system is designed to allow the entire backrest and frame assembly to be released when required.
This can be especially helpful for users who regularly transport their wheelchair or need access to the seating system for maintenance and adjustments.
However, installation should always be completed according to the applicable manufacturer’s instructions. If you are not familiar with wheelchair seating hardware, have the system installed or adjusted by a qualified wheelchair technician or seating professional.
The Direct Backrest Frame is compatible with Jay 3 backrests within the supported width range.
Jay 3 backrests are commonly used as part of wheelchair seating systems, and the Direct Backrest Frame provides a mounting option designed specifically around this type of backrest.
Before purchasing, confirm that your Jay 3 backrest falls within the supported 14″ to 20″ width range and that the frame is appropriate for your particular wheelchair configuration.
Compatibility should always be verified before installation because wheelchair frames and seating systems can differ.
The frame is also designed to mount compatible Matrx Elite backrests.
By using the Direct Backrest Frame hardware directly with the backrest, users can create a close-fitting mounting configuration while retaining adjustment capabilities.
The slotted brackets and UniTrack linkage disks provide positioning flexibility, while the release lever offers a convenient way to remove the assembly when necessary.
As with any wheelchair seating component, verify the exact backrest dimensions and mounting requirements before ordering.
The Direct Backrest Frame also supports compatible Varilite Icon backrests ranging from 14″ to 20″ wide.
This compatibility gives users and seating professionals another option when building or modifying a wheelchair seating system.
Since the frame is designed to work with several specific backrest families, it can be a useful choice for wheelchair configurations where a direct and adjustable mounting arrangement is preferred.
Always confirm the specific model and dimensions of your backrest before installation.
The Direct Backrest Frame offers several practical features for wheelchair seating applications.
The frame hardware mounts directly to the compatible backrest after the hardware normally supplied with the backrest is removed.
It is designed to accommodate compatible Jay 3, Matrx Elite, and Varilite Icon backrests measuring from 14″ to 20″ wide.
Slotted mounting brackets allow the backrest position to be adjusted for a closer and more suitable fit.
The close-mounting design helps make efficient use of available seat depth.
Rotating the 1″ UniTrack linkage disks provides up to 10° of backrest pitch adjustment.
The spring-loaded release lever allows the complete backrest and frame assembly to be removed more easily.
The combination of adjustability and removable mounting makes the system suitable for wheelchair users and professionals who need flexibility in their seating setup.
The Direct Backrest Frame can also be a useful component for rehabilitation and wheelchair seating professionals.
Every wheelchair user has different positioning requirements, and seating systems often need careful adjustment to achieve an appropriate configuration.
Having an adjustable mounting frame provides additional flexibility when positioning a compatible backrest. The ability to adjust the mounting position and backrest pitch can make the fitting process more adaptable.
The frame is not intended to replace professional seating assessment. Instead, it provides mounting flexibility that can be incorporated into an appropriately configured wheelchair seating system.
Correct installation is essential when working with wheelchair seating hardware.
The Direct Backrest Frame requires removal of the hardware that normally comes with the compatible backrest before the frame hardware is mounted directly to the backrest.
Because wheelchair seating components play an important role in positioning and support, installation should be performed carefully.
If you are unsure about the correct mounting procedure, consult the manufacturer’s instructions or have the frame installed by a qualified wheelchair seating professional.
After installation, the mounting hardware and release mechanism should be checked to ensure everything is secure and operating correctly.
When selecting a wheelchair backrest mounting frame, consider more than just compatibility.
The width of the backrest, mounting position, available seat depth, required pitch adjustment, and ease of removal can all influence whether a particular system is appropriate. visit the official Permobil makers site
The Direct Backrest Frame is particularly useful for users who need:
Checking these requirements before purchasing can help ensure the mounting system is appropriate for the intended wheelchair setup.
A good wheelchair seating system needs to work with the individual, not simply fit the chair.
The Direct Backrest Frame provides several adjustment options that can help create a more flexible seating configuration. Its slotted brackets allow close positioning, while the rotating linkage disks provide pitch adjustment.
Together, these features give seating professionals more control when configuring compatible backrests.
The spring-loaded release lever adds another layer of convenience by making it easier to remove the assembly when required.
you may also like some of our products:
If you need a versatile mounting solution for a compatible wheelchair backrest, the Direct Backrest Frame provides direct mounting, adjustable positioning, and convenient removal in one practical design.
Designed for compatible Jay 3, Matrx Elite, and Varilite Icon backrests from 14″ to 20″ wide, the frame uses slotted mounting brackets and 1″ UniTrack linkage disks to create a close, adjustable mount while helping maximize seat depth.
With up to 10° of backrest pitch adjustment and a spring-loaded release lever for easier removal, it offers useful flexibility for both everyday wheelchair users and seating professionals.
Before ordering, verify the backrest model, width, wheelchair configuration, and mounting compatibility. When correctly fitted, the Direct Backrest Frame can provide a convenient and adaptable foundation for a compatible wheelchair backrest system.

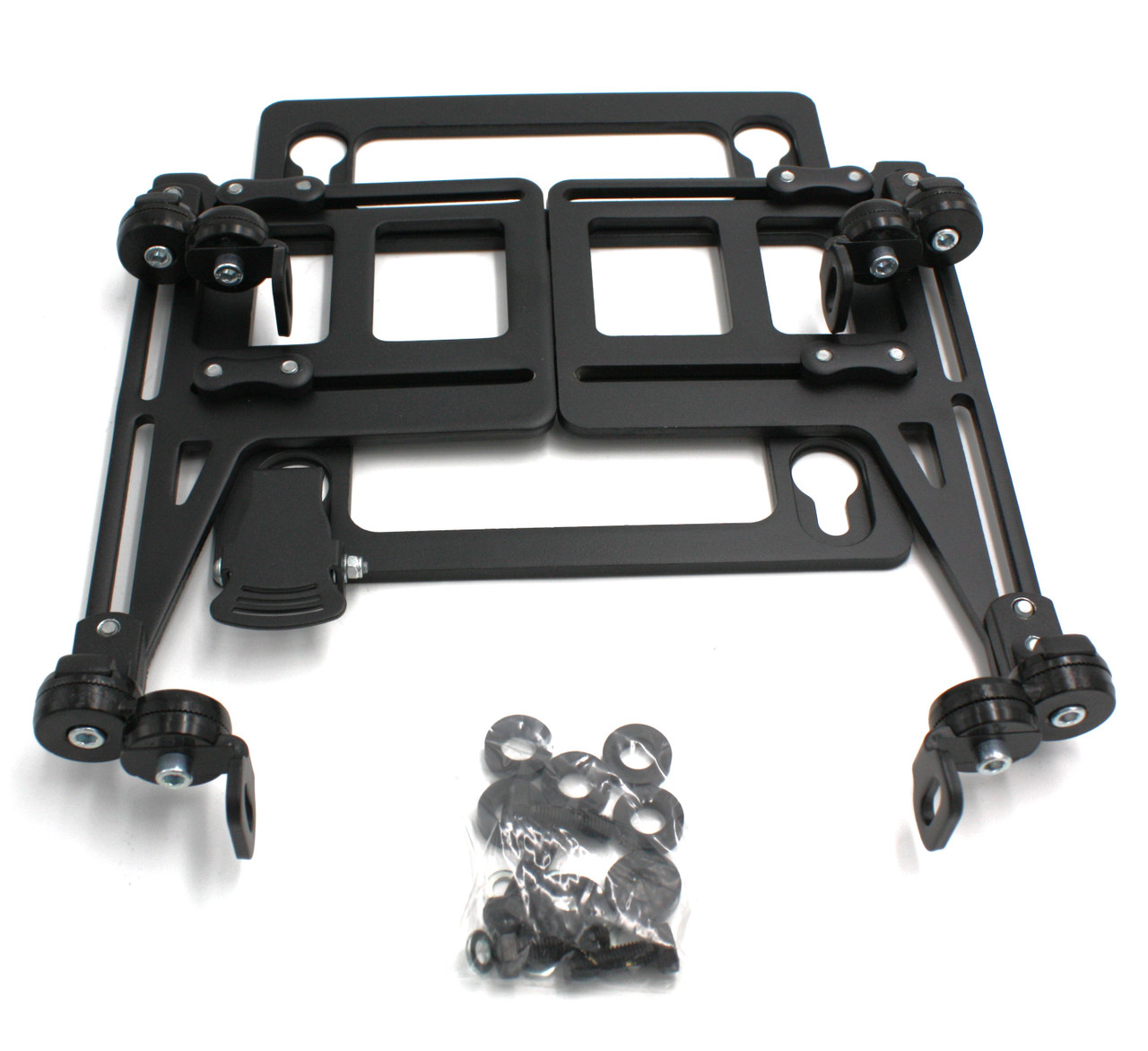

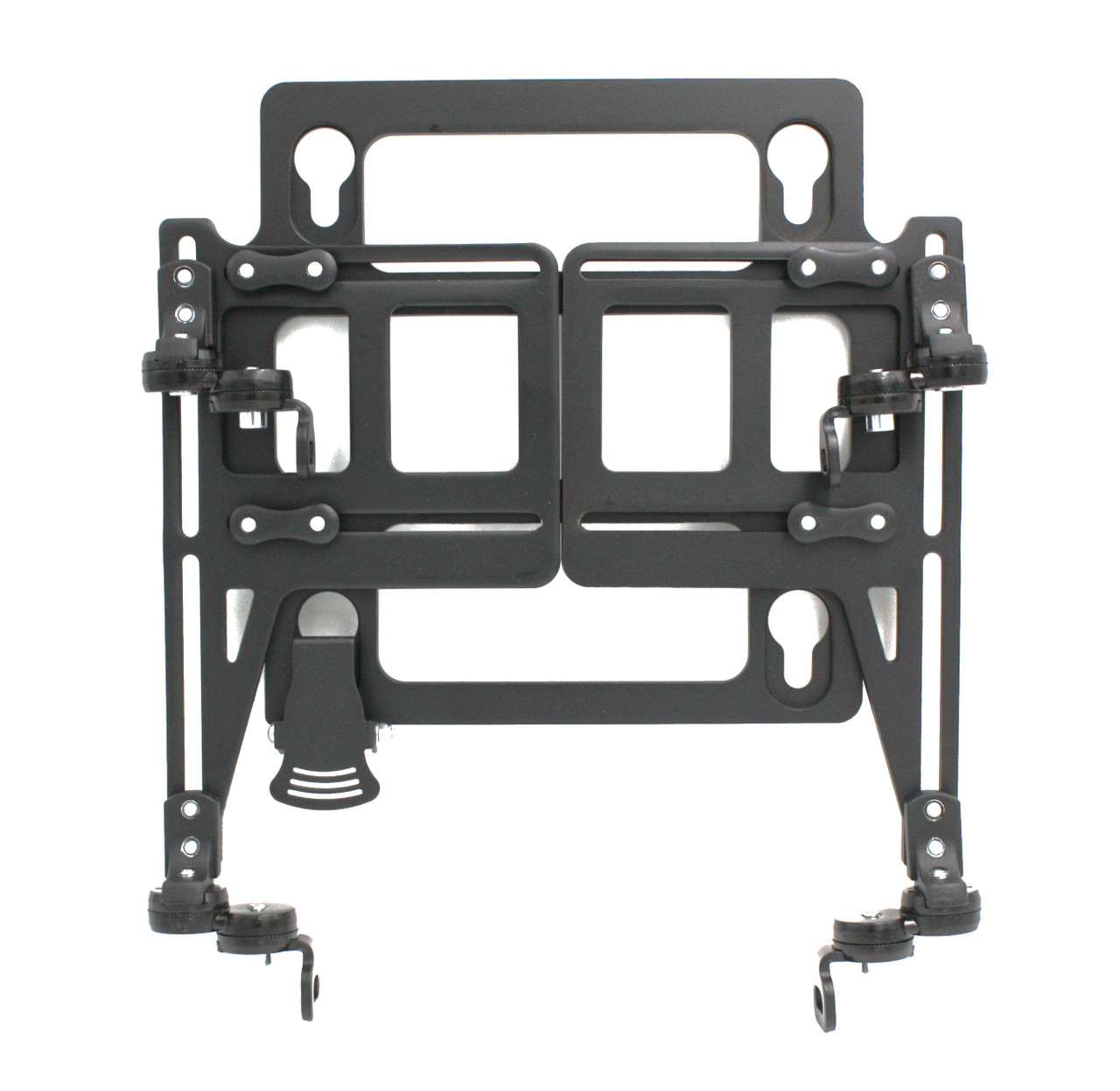

| Permobil Direct Backrest Frame: | Permobil Direct Backrest Frame, Corpus 3G |
|---|---|
| Description: | Used to mount ROHO Agility, Jay 3, Matrx Elite, Varilite Icon and Ride Java backrests ranging in width from 14" to 20". Slotted brackets and 1" UniTrack linkage disks provide a close, adjustable mount. Backrest pitch can be tuned by rotating the linkage D |
