$229.00

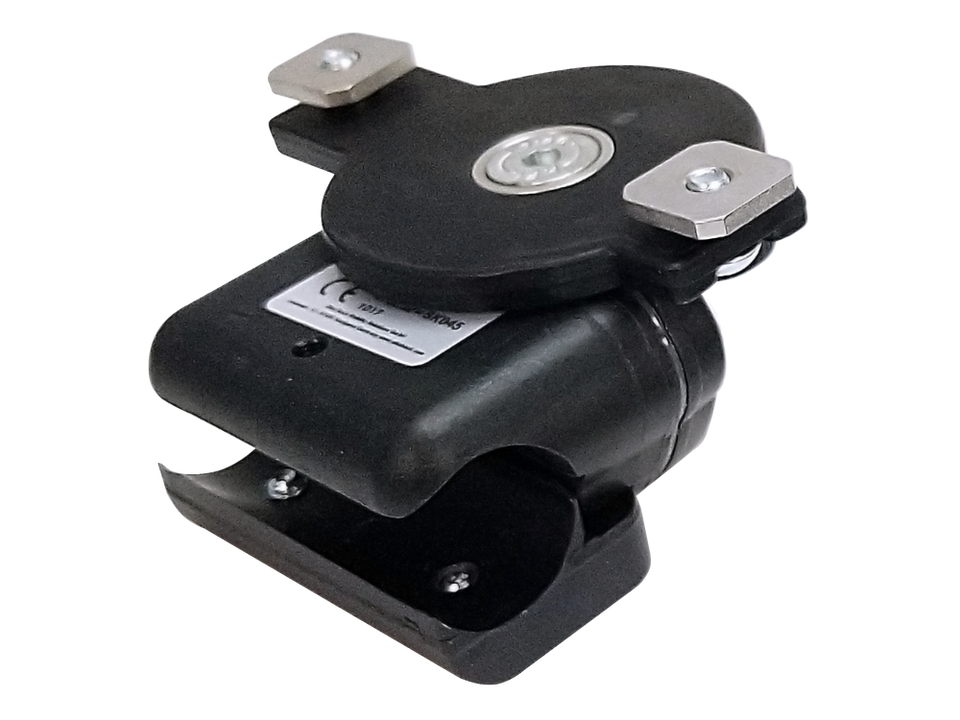

The Ottobock Elevating Swivel Unit allows the angle of the Channel Forearm Pad to be adjusted. The angle of the forearm can be adjusted from 0° to 12.5° or 25°. There is a choice between two adjustable rotation functions: Free and Continuous or Incremental Adjustments
Comfortable and properly positioned arm support can make a significant difference in the everyday wheelchair experience.
The Ottobock Elevating Swivel Unit is designed to give users and rehabilitation professionals more flexibility when positioning a compatible Channel Forearm Pad or armrest.
Rather than keeping the forearm support in one fixed position, this hardware allows the angle of the forearm to be adjusted. Depending on the configuration, the forearm angle can be set at 0°, 12.5°, or 25°.
The unit also incorporates a swivel function, giving users a choice between free and continuous movement or incremental positioning.
This combination of elevation and swivel functionality makes the unit a practical component for individualized wheelchair seating and upper-extremity positioning.
The primary purpose of the Ottobock Elevating Swivel Unit is to provide greater adjustability for the Channel Forearm Pad.
Every wheelchair user has different positioning requirements. The ideal forearm position can depend on posture, arm function, range of motion, wheelchair controls, seating configuration, and daily activities.
The elevating function provides several positioning options.

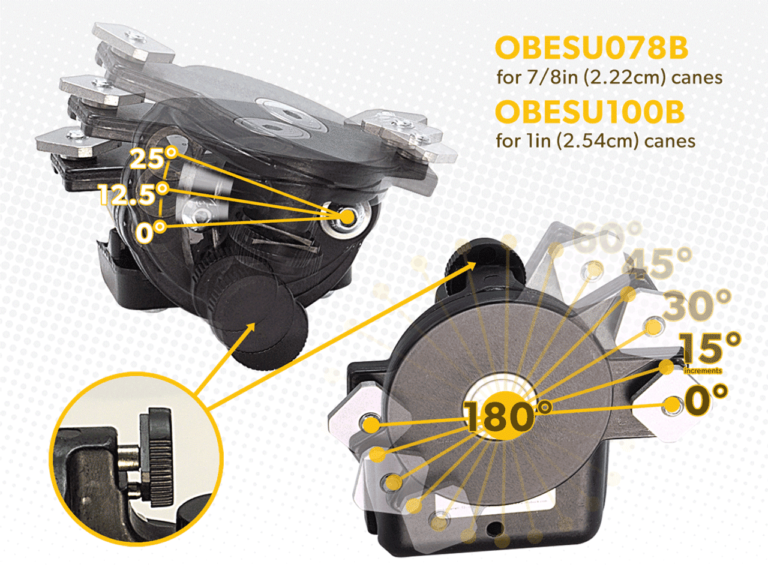

The forearm angle can be adjusted from a neutral 0° position to approximately 12.5° or 25°, depending on the selected configuration.
This allows the forearm support to be adapted to the user’s positioning requirements rather than relying on a single fixed angle.
Having multiple elevation settings gives the Ottobock Elevating Swivel Unit useful positioning flexibility.
The available positions include:
A 0° setting can provide a more neutral starting position, while the elevated settings allow the forearm support to be positioned at a greater angle.
The appropriate angle depends on the user’s individual needs and the overall wheelchair seating configuration.
For users with specialized positioning requirements, a qualified therapist or seating and mobility professional should help determine the appropriate setting.
The elevation feature allows the armrest or compatible forearm support to be raised to approximately 12° or 25°.
This adjustment can provide additional flexibility when positioning the upper extremity.
A well-positioned forearm support may help create a more comfortable and functional seating environment, particularly for users who require additional support for their arms.
The elevation function is especially useful when the wheelchair setup needs to accommodate different postural requirements or upper-extremity positioning goals.
In addition to elevation, the unit provides a swivel function.
The swivel feature allows the armrest to pivot through a wide arc. Depending on the selected adjustment style, the movement can be free and continuous or positioned incrementally.
This gives users greater flexibility when moving the forearm support out of the way or positioning it for use.
The swivel functionality can be particularly useful when the armrest needs to move temporarily to accommodate transfers or other activities.
One of the available swivel options provides free and continuous rotation.
This configuration allows the compatible armrest or forearm support to move freely through a wide arc.
For users who benefit from flexible arm positioning, free rotation can provide greater freedom when moving the support into or away from the preferred position.
It can also be useful when the support needs to be moved aside temporarily.
The alternative swivel function provides incremental adjustments.
With this configuration, the armrest can be positioned at approximately 15° to 18° and locked in place using a spring-mounted pin.
This provides a more controlled positioning option compared with unrestricted rotation.
The spring-mounted pin helps secure the armrest in the selected position, providing a defined stopping point for the support.
One of the most practical benefits of the Ottobock Elevating Swivel Unit is its ability to assist with transfers.
The swivel mechanism allows compatible armrests and joysticks to swing aside.
For wheelchair users who perform lateral transfers, having the arm support move out of the way can provide additional clearance around the seating area.
This can make the transfer process more convenient and can reduce the need to maneuver around a fixed armrest.
Transfer requirements differ from person to person, so users should always follow their established transfer techniques and safety recommendations .visit the official Permobil makers site
The unit can also help facilitate movement of compatible joystick configurations.
Being able to swing the armrest and joystick aside can create additional space when the user is transferring into or out of the wheelchair.
For power wheelchair users, joystick positioning is especially important because the control must be accessible during driving but may need to move away during certain activities.
The swivel function provides additional flexibility in managing this positioning.
Compatibility with the specific joystick and wheelchair configuration should be confirmed before installation.
The Ottobock Elevating Swivel Unit is designed to work with compatible Channel Forearm Pads.
This allows the elevating and swivel hardware to become part of a broader upper-extremity support system.
The Channel Forearm Pad can provide the surface supporting the forearm, while the Elevating Swivel Unit provides the mechanical positioning and movement functionality.
Together, these components can offer a more adaptable forearm support solution.
Upper-extremity positioning is an important part of many individualized wheelchair seating systems.
A user’s arms may need support to promote comfort, stability, functional positioning, or access to controls.
The Ottobock Elevating Swivel Unit adds adjustability to the forearm support, allowing the position to be modified according to individual requirements.
Because positioning needs can be highly specific, professional assessment is recommended when the hardware is being used for complex seating and postural support.
There is an important consideration when installing the Ottobock Elevating Swivel Unit.
The armrest height will increase by approximately 13/16 inch (3 cm) when the E.S.U. is installed.
This additional height should be taken into account when planning the wheelchair’s armrest configuration.
The manufacturer recommends using height-adjustable armrests to compensate for this increase where appropriate.
Considering the additional height before installation can help ensure that the finished setup provides the desired arm and shoulder position.
Height-adjustable armrests can provide useful flexibility when incorporating the Elevating Swivel Unit.
Because the E.S.U. adds approximately 3 cm to armrest height, an adjustable armrest can help compensate for the change.
This can be particularly important for users who have specific upper-extremity positioning requirements.
The final armrest height should provide appropriate support without creating unnecessary elevation of the shoulders.
A seating and mobility professional can help determine the correct overall configuration.
The Ottobock Elevating Swivel Unit offers several useful features for wheelchair seating and positioning:
The Ottobock Elevating Swivel Unit may be useful for wheelchair users who require greater flexibility in upper-extremity positioning.
It can be especially valuable for users who use Channel Forearm Pads and need the ability to adjust the forearm angle or move the armrest aside during transfers.
It may also be considered for users whose wheelchair configuration requires flexible joystick positioning.
Because upper-extremity positioning is highly individualized, this product should be selected based on the user’s specific seating system and functional needs.
A wheelchair armrest serves more than one purpose.
It can support the arm during everyday activities, contribute to positioning, and interact with other wheelchair components.
The Ottobock Elevating Swivel Unit enhances this functionality by providing both elevation and swivel adjustment.
Users can benefit from a support that can be repositioned when needed rather than remaining permanently fixed.
This can make the seating system more adaptable throughout the day.
Transfers are an important part of daily wheelchair use for many individuals.
A fixed armrest can sometimes occupy valuable space around the seat during a transfer.
The swivel mechanism of the Ottobock Elevating Swivel Unit allows compatible armrests and joysticks to swing aside.
This can provide additional clearance and make it easier to approach the wheelchair seat.
Users should always use safe transfer practices appropriate to their abilities and follow recommendations from their healthcare or rehabilitation team.
A user’s preferred arm position may change depending on the activity.
The position used while driving may differ from the position needed while resting, communicating, eating, working, or transferring.
The Ottobock Elevating Swivel Unit provides multiple adjustment possibilities that can help accommodate these changing requirements.
The elevation function changes the forearm angle, while the swivel function changes the orientation of the support.
Together, these features create a flexible positioning solution.
Wheelchair seating systems are often customized around the needs of the individual user.
Armrests, forearm pads, controls, positioning supports, and other accessories must work together to create an effective setup.
The Elevating Swivel Unit contributes another level of adjustability to this system.
Its compatibility with the Channel Forearm Pad allows users and professionals to incorporate the hardware into a broader upper-extremity support solution.
Before installing the Ottobock Elevating Swivel Unit, users should consider the additional armrest height created by the hardware.
The approximately 3 cm increase may affect the overall relationship between the armrest, shoulder, forearm, joystick, and seating system.
Using height-adjustable armrests can help compensate for this change.
It is also important to verify compatibility with the wheelchair, armrest, Channel Forearm Pad, joystick, and other components.
Professional installation may be appropriate when integrating the unit into a complex seating or power wheelchair system.
The choice between free and continuous rotation and incremental adjustment depends on the user’s needs.
The free and continuous rotation option may be preferred when maximum freedom of movement is desired.
The incremental adjustment option may be more appropriate when the user needs a defined position and the ability to lock the armrest using the spring-mounted pin.
Neither configuration is universally better. The appropriate choice depends on the user’s seating requirements, transfer technique, arm function, and intended use.
The main advantage of the Ottobock Elevating Swivel Unit is its combination of elevation and swivel functionality.
It provides multiple forearm angle options while allowing the armrest to move through a wide arc or be positioned incrementally.
This flexibility can be useful for upper-extremity positioning, joystick access, daily activities, and transfers.
For users who need more than a fixed forearm support, the E.S.U. can add valuable adjustability to a compatible wheelchair seating system.
The Ottobock Elevating Swivel Unit is designed to provide:
The Ottobock Elevating Swivel Unit is a versatile piece of wheelchair armrest hardware designed to provide greater flexibility in upper-extremity positioning.
With forearm angle adjustment options of 0°, 12.5°, and 25°, the unit can accommodate different positioning requirements. Its swivel function adds another level of flexibility, offering either free and continuous rotation or incremental adjustment.
The incremental configuration can position the armrest at approximately 15° to 18° and secure it with a spring-mounted pin, while the free-swivel option allows movement through a wider arc.
| Ottobock Stealth Elevating Swivel Hardware for Arm Support: | Ottobock Stealth Elevating Swivel Hardware for Arm Support |
|---|---|
| Compatiblity: | Compatible with Ottobock Stealth Channel Arm Supports Only |
